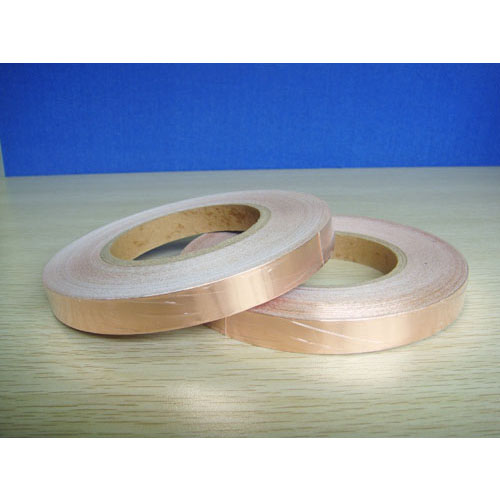

Consist of copper foil and conductive pressure-sensitive acrylic adhesive, with silicone release paper. The tape is mainly used in grounding and EMI shielding fileds, such as PC monitor, transformer, shielded room and other eliminating EMI applications.
Total thickness: 0.06mm, 0.09mm(without liner)
Color: Gold
Width: 5~460mm
Length: 25/50Meters
|
Model |
Total Thickness |
Adhesive |
Surface Impedance |
|
7202 |
0.06mm |
Non-conductive Acrylic |
0.03Ω |
|
7204 |
0.09mm |
Non-conductive Acrylic |
0.035Ω |
|
7211 |
0.06mm |
Conductive acrylic |
0.035Ω |
|
7213 |
0.09mm |
Conductive acrylic |
0.05Ω |
